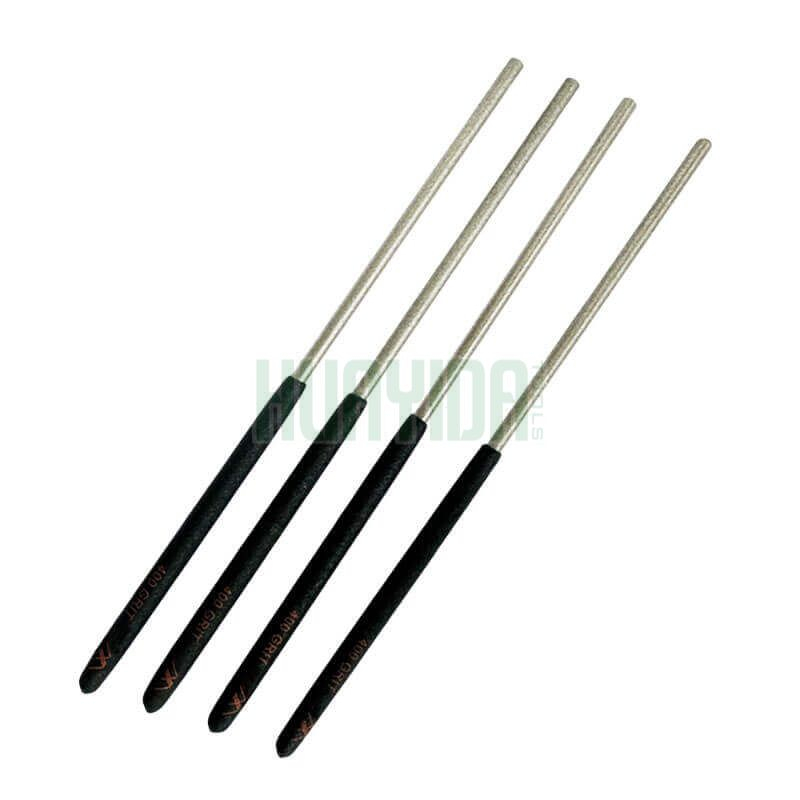

Diamond Needle File Applications
Diamond Needle Files combine the precision of diamond abrasives with the convenience of a traditional file, offering rapid, consistent sharpening for a wide range of chainsaw chains. Below are the primary applications and advantages of using these tools in various settings:
Jewelry finishing & stone setting
Why: Diamond grit cuts precious metals and gemstones cleanly without glazing or tearing delicate edges.
Recommended grits: 600–1200 (fine) for finishing; 240–400 for light shaping.
Tips: Use light, controlled strokes and rotate the part frequently to avoid over-removal. Wet the work for heat control on softer stones.
Pitfalls: Excessive pressure can fracturing fragile stones or round out settings.

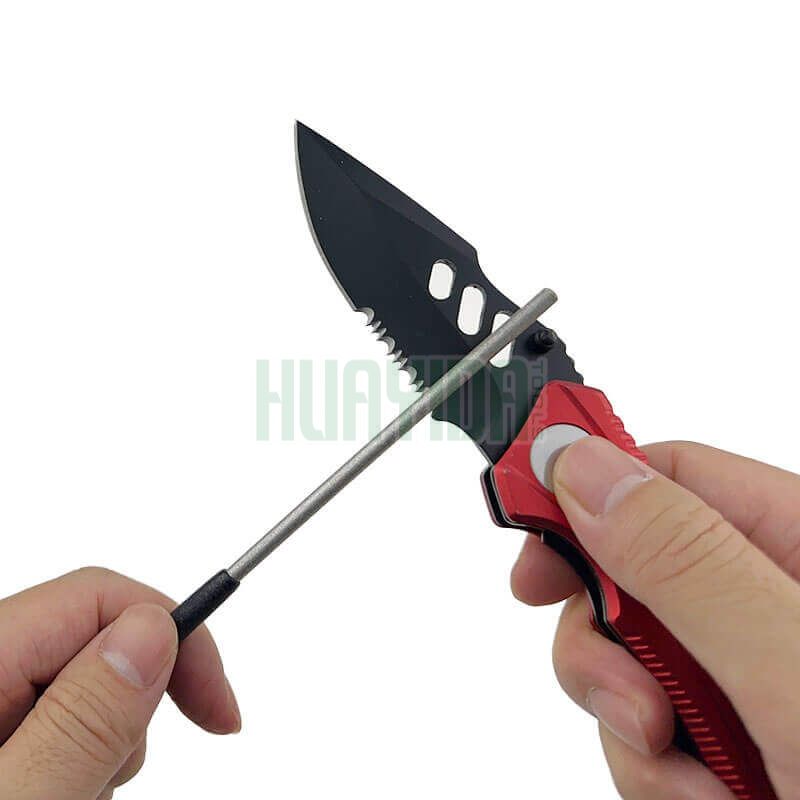

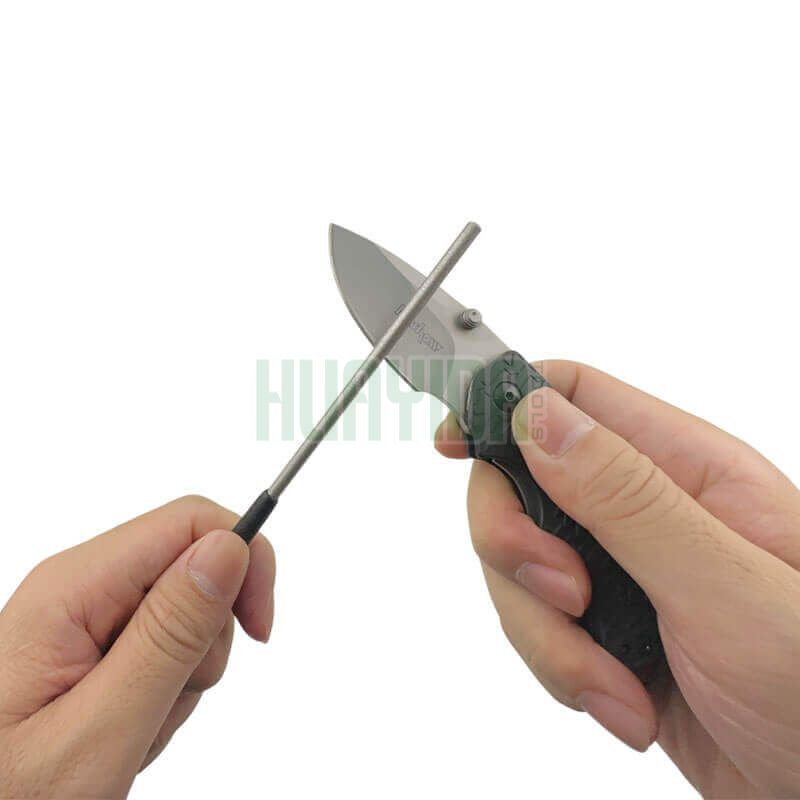

Knife making, serration work & sharpening detail
Why: Round profiles access serration gullets, thumb grooves, and guard recesses for consistent geometry and burr removal.
Recommended grits: 180–400 (reshaping) → 600–1200 (finishing).
Tips: Match file diameter to serration radius; use slow, steady rotary speeds and minimal lateral pressure to preserve tooth geometry.
Pitfalls: Overfeeding will blunt the serration profile or introduce heat discoloration—use intermittent contact.
Modelmaking, scale fabrication & prototyping
Why: Precise shaping of resin, brass, and plastics where small radii matter. Diamond stays sharp longer than abrasive silicon carbide on fine details.
Recommended grits: 240–600 depending on material and finish.
Tips: For thermoplastics, use light pressure and occasional wetting to reduce melting. For metal model parts, combine with small needle files for final detail.
Pitfalls: Rapid rotary speeds + friction can melt plastics or clog grit—lower rpm and use coolant for plastics.
Ceramics, glass & lapidary edge work
Why: Diamond is the only practical abrasive for controlled material removal on glass and technical ceramics.
Recommended grits: 120–400 for shaping; 600–1200 for smoothing/polish prep.
Tips: Use continuous light lubrication (water) to remove slurry and reduce micro-cracking. Cycle contact and rinse frequently.
Pitfalls: Dry work causes micro-fractures; always run wet and inspect for subsurface damage.
Carbide, cermet & hard-alloy trimming
Why: Conventional files/abrasives fail on tungsten carbide; electroplated diamond cuts and deburrs reliably.
Recommended grits: 180–400 for trimming; 400–800 for final blending.
Tips: Use low feed, moderate rpm, and minimal pressure; remove slurry to avoid glazing.
Pitfalls: Aggressive pressure may delaminate the plating—maintain controlled engagement.
Watchmaking, clock repair & micro-mechanics
Why: Small round profiles access pivot holes, jewel seats, and tight recesses with micron-level control.
Recommended grits: 800–1500 for polishing; 400–800 for minor shaping.
Tips: Work under magnification, use fine grit for finishing, and clean parts with ultrasonics after filing.
Pitfalls: Contamination from metal filings—clean thoroughly to avoid bearing damage.
Dental lab & prosthetic model trimming (non-surgical lab work)
Why: Precise trimming of acrylics, porcelain and model waxes with predictable material removal.
Recommended grits: 240–600 for model shaping; finer for final finishing.
Tips: Use water spray when applicable and capture debris for hygiene.
Pitfalls: Not suitable for clinical drill-in vivo use—limited to lab/model work.
Electronics, PCB & micro-electromechanical prep
Why: Chamfering pads, cleaning vias and trimming leads in tight spaces without causing large mechanical stress.
Recommended grits: 400–1200 depending on board material and goal.
Tips: Low speed, minimal contact; blow out debris with compressed air and clean flux residues.
Pitfalls: Metal dust and conductive debris can short circuits—clean thoroughly.
Stone, gem tuning & micro-faceting
Why: Accurate reworking of drill holes, facet touch-ups and small repairs on gems and inlaid stones.
Recommended grits: 400–1200 for finish work; coarser for shaping.
Tips: Use water, work slowly, and check facet alignment frequently.
Pitfalls: Too coarse or hard pressure will chip brittle stones.
Mold, die & tooling maintenance
Why: Remove flash, polish small cavities and blend parting lines on hardened tool steel where fine control is required.
Recommended grits: 180–400 for flash removal; 400–800 for blending and prep for polishing.
Tips: Match file radius to cavity profile; use lubricant and inspect for plating wear.
Pitfalls: Over-aggressive use may wear down electroplated diamond—rotate tools and replace when plating thins.
General professional guidance
Wet vs Dry: Prefer wet use (water or light coolant) for glass, ceramics and carbide. Dry use is acceptable for controlled metal deburring.
Speeds & Feed: Moderate RPM and light pressure preserve electroplated grit and minimize heat. Avoid combined high speed + heavy pressure.
Maintenance: Rinse to remove slurry; brush with a soft nylon brush to restore cutting action. Replace files when grit zones glaze or plating is exposed.
Selection: Choose file diameter/profile to match the feature radius; coarser grits for faster removal, finer grits for polish.
Safety: Use eye protection, dust extraction and respirators where appropriate; diamond and metal particulates require careful housekeeping.
Key Benefits of Diamond Needle Files (quick comparison)
| Benefit | Traditional File | Diamond Needle File |
|---|
| Sharpening / cutting speed | Moderate | Fast |
| Useful lifespan | ~20–30 sharpenings (varies) | 200+ operations (typical, depends on use) |
| Clog resistance | Low | High |
| Angle consistency | User dependent | High (profiles available) |
| Cost per operation | Low initial, higher lifetime | Higher initial, lower long‑term |
Conclusion
Diamond needle files are a versatile, high‑precision solution for professionals across jewelry, tooling, watchmaking, electronics, ceramics, and woodworking tool maintenance. Correct grit selection, controlled technique, adequate lubrication and proper cleaning extend life and ensure consistent, high‑quality outcomes. For HUAYIDA product pages, pair each application section with recommended file profiles and SKU suggestions to help users select the optimal tool for their task.
